HMNB Faslane
Cairnhill completed the fabrication and supply of 8 no Structural Steel Skids for HMNB Faslane.
Project Details
Working for Graham; Project Deliverables – Design, Structural Steelwork, Ladders, Grating, Handrails, Trial Build, Pipework, Vessels, and Testing of 8 no Structural Steel Skids. Structure Weight – 37 tonnes
Cairnhill completed the fabrication and supply of 8 no Structural Steel Skids. The design and build associated with the project were undertaken as a joint venture to allow the sequencing of the trial build. All parts were constructed as individual modules and then assembled and tested on-site under nuclear conditions.
Specifically, designed lifting points were added to ensure the structures could be transported evenly with limited possibility of the structures, pipework, or vessels being damaged
Total labour on-site and in the factory, incl. all scopes of work = 15 supported by a Project Management
Summary of Scope

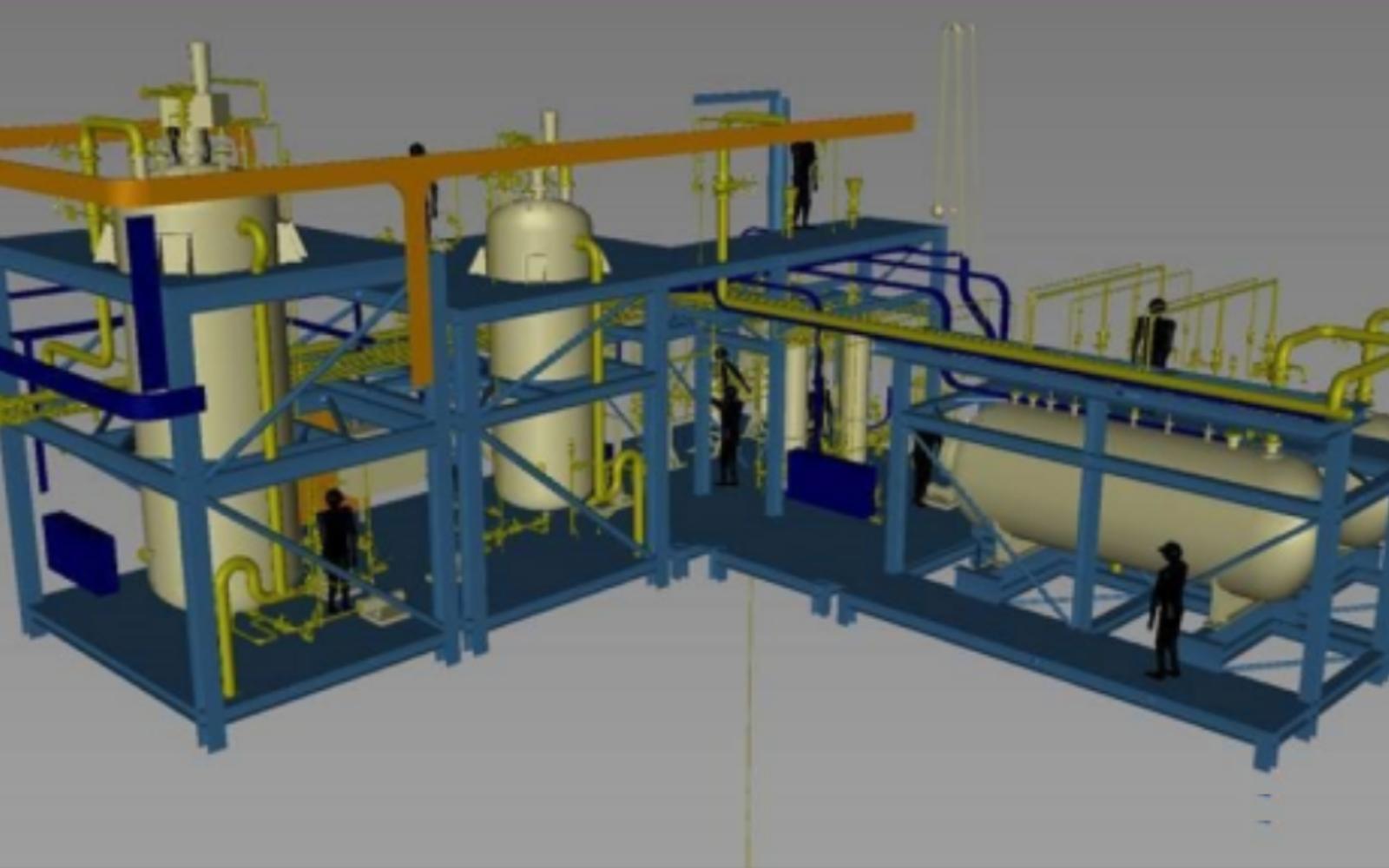

HMNB Faslane Effluent Treatment Plant Modules Scope of work includes Design, Supply, Fabricate and Install
Client
Graham
Location
Faslane
Contract Date’s
December 2020
Contract Value
Approximately £1.9m (Overall Project Value)
